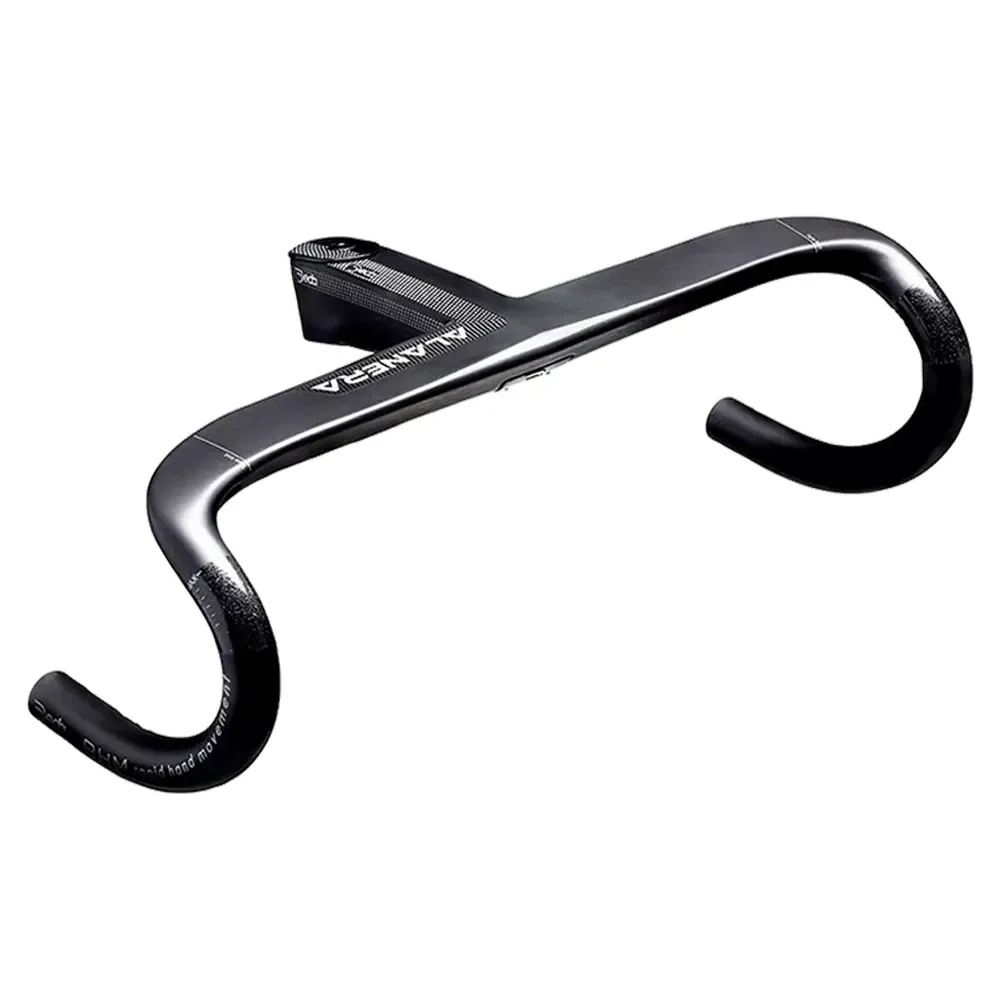

Deda Alanera DCR Carbon Handlebars in Black

The Alanera's new DCR (Deda Internal Cable Routing) system allows full internal routing of the cables inside the handlebar when mounted on D-shaped forks.

Developed to be aero, the optimized design of the integrated bar and stem guarantees a perfectly integrated look with the bike. The RHM shape guarantees a very compact reach and drop for a fast change of position from the shifters to the drops. Specific aero spacers with an innovative mounting system complete the design of the handlebar, the result is a bar that is more integrated with the frame. A special aero topcap and a Garmin bike mount complete the supplied accessories. There is an Easy Fixing system for Di2 & EPS unit under the stem.

The Alanera is available in 11 different size combinations.

Features:

• Sizes: 130x42, 100x42, 90x42, 110x42, 110x44, 120x42, 120x44, 120x46, 130x44, 130x46
• Notes about sizes: Stem Length (mm) x handlebar width (cm) measured outside to outside
• Shape: RHM (Rapid Hand Movement)
• Material: UD full carbon construction
• Fork Steerer: 1 1/8" - Tapered (28.6mm)
• Angle: 82deg
• Depth: 75mm
• Drop: 130mm
• Accessories: Garmin bike mount for 500/800 series, aero headset spacers and topcap. (Wahoo mount available to order)
• Handlebar Weight: 350g (110x42)
